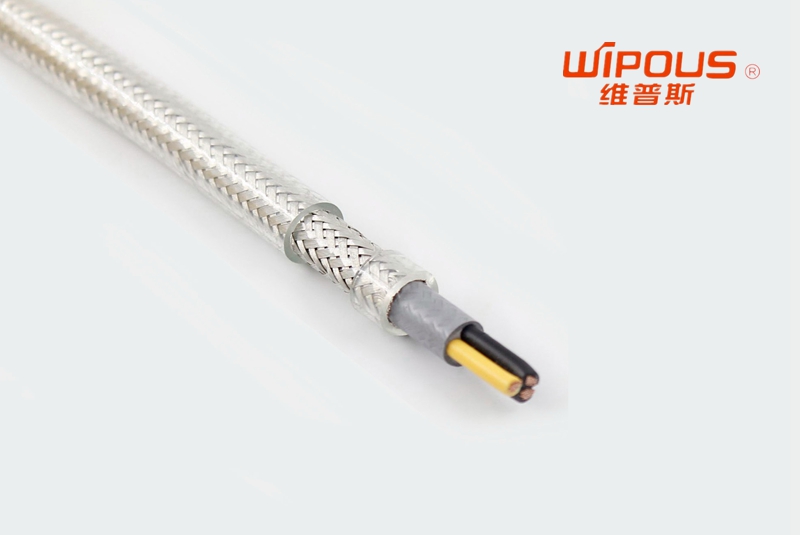

特制柔性PVC内护套
镀锡铜丝编织屏蔽
特制柔性PVC外护套
五类铜丝导体
特制PVC绝缘
产品应用：
乔浦HR2KMCE-S屏蔽PVC双护套控制电缆用于工业自动化，机电成套设备，机床等机械设备，物流传输系统，生产线等控制系统中电气连接，特别适合用于工业环境中，干燥或者潮湿的室内固定安装，也可用于非连续往复运动无强制牵引的移动安装。该线缆如果要在室外露天安装，必须做好防紫外线防护。该线缆具有良好的柔软性。内护套是电缆更加圆整，紧凑。护套采用耐油PVC，使线缆具有良好的耐油性能。镀锡铜编织屏蔽使线缆具有较强的抗外界电磁干扰能力，保证电缆系统的稳定性。
| 型号 | 芯线根数+导体截面积 | 电缆近似外径 (mm Max.) |
电缆近似重量 (kg / km) |
| HR2KMCE-S-0.5-2C | 2*0.5 | 8.1 | 99.4 |
| HR2KMCE-S-0.5-3C | 3*0.5 | 8.5 | 111.5 |
| HR2KMCE-S-0.5-4C | 4*0.5 | 9.2 | 129.3 |
| HR2KMCE-S-0.5-5C | 5*0.5 | 9.9 | 148.9 |
| HR2KMCE-S-0.5-6C | 6*0.5 | 10.7 | 169.7 |
| HR2KMCE-S-0.5-7C | 7*0.5 | 10.7 | 178.8 |
| HR2KMCE-S-0.5-8C | 8*0.5 | 11.5 | 199.9 |
| HR2KMCE-S-0.5-9C | 9*0.5 | 12.5 | 227.1 |
| HR2KMCE-S-0.5-10C | 10*0.5 | 13.3 | 252.8 |
| HR2KMCE-S-0.5-12C | 12*0.5 | 13.6 | 276.1 |
| HR2KMCE-S-0.5-14C | 14*0.5 | 14.3 | 305.7 |
| HR2KMCE-S-0.5-16C | 16*0.5 | 15.0 | 337.2 |
| HR2KMCE-S-0.5-18C | 18*0.5 | 15.8 | 369.9 |
| HR2KMCE-S-0.5-20C | 20*0.5 | 16.2 | 394.2 |
| HR2KMCE-S-0.5-21C | 21*0.5 | 16.6 | 412.5 |
| HR2KMCE-S-0.5-24C | 24*0.5 | 18.4 | 480.2 |
| HR2KMCE-S-0.5-25C | 25*0.5 | 18.8 | 499.6 |
| HR2KMCE-S-0.5-27C | 27*0.5 | 18.8 | 514.5 |
| HR2KMCE-S-0.5-30C | 30*0.5 | 19.4 | 555.8 |
| HR2KMCE-S-0.5-32C | 32*0.5 | 120.4 | 618.8 |
| HR2KMCE-S-0.5-36C | 36*0.5 | 20.9 | 644.0 |
| HR2KMCE-S-0.75-2C | 2*0.75 | 8.6 | 114.1 |
| HR2KMCE-S-0.75-3C | 3*0.75 | 9.1 | 129.3 |
| HR2KMCE-S-0.75-4C | 4*0.75 | 9.6 | 124.1 |
| HR2KMCE-S-0.75-5C | 5*0.75 | 10.6 | 175.3 |
| HR2KMCE-S-0.75-6C | 6*0.75 | 11.4 | 200.6 |
| HR2KMCE-S-0.75-7C | 7*0.75 | 11.4 | 212.7 |
| HR2KMCE-S-0.75-8C | 8*0.75 | 12.3 | 238.5 |
| HR2KMCE-S-0.75-9C | 9*0.75 | 13.4 | 271.4 |
| HR2KMCE-S-0.75-10C | 10*0.75 | 14.3 | 302.8 |
| HR2KMCE-S-0.75-12C | 12*0.75 | 14.7 | 332.6 |
| HR2KMCE-S-0.75-14C | 14*0.75 | 15.4 | 369.8 |
| HR2KMCE-S-0.75-16C | 16*0.75 | 16.2 | 409.2 |
| HR2KMCE-S-0.75-18C | 18*0.75 | 17.1 | 450.1 |
| HR2KMCE-S-0.75-20C | 20*0.75 | 17.5 | 481.2 |
| HR2KMCE-S-0.75-21C | 21*0.75 | 17.9 | 504.0 |
| HR2KMCE-S-0.75-24C | 24*0.75 | 20.1 | 612.3 |
| HR2KMCE-S-0.75-25C | 25*0.75 | 20.5 | 636.9 |
| HR2KMCE-S-0.75-27C | 27*0.75 | 20.5 | 657.1 |
| HR2KMCE-S-0.75-30C | 30*0.75 | 21.3 | 710.5 |
| HR2KMCE-S-0.75-32C | 32*0.75 | 22.1 | 758.2 |
| HR2KMCE-S-0.75-36C | 36*0.75 | 22.9 | 824.0 |
| HR2KMCE-S-1.0-2C | 2*1.0 | 9.1 | 127.5 |
| HR2KMCE-S-1.0-3C | 3*1.0 | 9.5 | 145.8 |
| HR2KMCE-S-1.0-4C | 4*1.0 | 10.3 | 171.7 |
| HR2KMCE-S-1.0-5C | 5*1.0 | 11.2 | 199.8 |
| HR2KMCE-S-1.0-6C | 6*1.0 | 12.1 | 229.4 |
| HR2KMCE-S-1.0-7C | 7*1.0 | 12.1 | 244.4 |
| HR2KMCE-S-1.0-8C | 8*1.0 | 13.0 | 274.6 |
| HR2KMCE-S-1.0-9C | 9*1.0 | 14.2 | 312.7 |
| HR2KMCE-S-1.0-10C | 10*1.0 | 15.1 | 349.4 |
| HR2KMCE-S-1.0-12C | 12*1.0 | 15.6 | 385.5 |
| HR2KMCE-S-1.0-14C | 14*1.0 | 16.4 | 430.0 |
| HR2KMCE-S-1.0-16C | 16*1.0 | 17.2 | 477.0 |
| HR2KMCE-S-1.0-18C | 18*1.0 | 18.1 | 525.6 |
| HR2KMCE-S-1.0-20C | 20*1.0 | 18.6 | 563.2 |
| HR2KMCE-S-1.0-21C | 21*1.0 | 19.0 | 590.2 |
| HR2KMCE-S-1.0-24C | 24*1.0 | 21.4 | 714.6 |
| HR2KMCE-S-1.0-25C | 25*1.0 | 21.8 | 743.7 |
| HR2KMCE-S-1.0-27C | 27*1.0 | 21.8 | 769.0 |
| HR2KMCE-S-1.0-30C | 30*1.0 | 22.6 | 833.1 |
| HR2KMCE-S-1.0-32C | 32*1.0 | 23.5 | 889.5 |
| HR2KMCE-S-1.0-36C | 36*1.0 | 24.4 | 968.9 |
| HR2KMCE-S-1.5-2C | 2*1.5 | 10.2 | 162.8 |
| HR2KMCE-S-1.5-3C | 3*1.5 | 10.8 | 188.1 |
| HR2KMCE-S-1.5-4C | 4*1.5 | 11.7 | 223.5 |
| HR2KMCE-S-1.5-5C | 5*1.5 | 12.7 | 261.9 |
| HR2KMCE-S-1.5-6C | 6*1.5 | 13.8 | 302.3 |
| HR2KMCE-S-1.5-7C | 7*1.5 | 13.8 | 323.9 |
| HR2KMCE-S-1.5-8C | 8*1.5 | 14.9 | 365.1 |
| HR2KMCE-S-1.5-9C | 9*1.5 | 16.3 | 416.9 |
| HR2KMCE-S-1.5-10C | 10*1.5 | 17.4 | 467.3 |
| HR2KMCE-S-1.5-12C | 12*1.5 | 17.9 | 518.2 |
| 型号 | 芯线根数+导体截面积 | 电缆近似外径 (mm Max.) |
电缆近似重量 (kg / km) |
| HR2KMCE-S-1.5-14C | 14*1.5 | 18.9 | 580.2 |
| HR2KMCE-S-1.5-16C | 16*1.5 | 20.1 | 670.9 |
| HR2KMCE-S-1.5-18C | 18*1.5 | 21.2 | 739.9 |
| HR2KMCE-S-1.5-20C | 20*1.5 | 21.8 | 793.6 |
| HR2KMCE-S-1.5-21C | 21*1.5 | 22.3 | 832.1 |
| HR2KMCE-S-1.5-24C | 24*1.5 | 24.8 | 970.2 |
| HR2KMCE-S-1.5-25C | 25*1.5 | 25.4 | 1010.5 |
| HR2KMCE-S-1.5-27C | 27*1.5 | 25.4 | 1047.1 |
| HR2KMCE-S-1.5-30C | 30*1.5 | 26.5 | 1170.5 |
| HR2KMCE-S-1.5-32C | 32*1.5 | 27.6 | 1250.4 |
| HR2KMCE-S-1.5-36C | 36*1.5 | 28.6 | 1363.5 |
| HR2KMCE-S-2.5-2C | 2*2.5 | 11.8 | 222.1 |
| HR2KMCE-S-2.5-3C | 3*2.5 | 12.5 | 260.4 |
| HR2KMCE-S-2.5-4C | 4*2.5 | 13.6 | 312.7 |
| HR2KMCE-S-2.5-5C | 5*2.5 | 14.9 | 369.4 |
| HR2KMCE-S-2.5-6C | 6*2.5 | 16.2 | 429.0 |
| HR2KMCE-S-2.5-7C | 7*2.5 | 16.2 | 463.0 |
| HR2KMCE-S-2.5-8C | 8*2.5 | 17.5 | 523.7 |
| HR2KMCE-S-2.5-9C | 9*2.5 | 19.5 | 623.8 |
| HR2KMCE-S-2.5-10C | 10*2.5 | 20.8 | 699.8 |
| HR2KMCE-S-2.5-12C | 12*2.5 | 21.5 | 779.1 |
| HR2KMCE-S-2.5-14C | 14*2.5 | 22.6 | 874.6 |
| HR2KMCE-S-2.5-16C | 16*2.5 | 23.9 | 975.2 |
| HR2KMCE-S-2.5-18C | 18*2.5 | 25.2 | 1079.0 |
| HR2KMCE-S-2.5-20C | 20*2.5 | 26.1 | 1194.3 |
| HR2KMCE-S-2.5-21C | 21*2.5 | 26.8 | 1252.9 |
| HR2KMCE-S-2.5-24C | 24*2.5 | 29.8 | 1461.6 |
| HR2KMCE-S-2.5-25C | 25*2.5 | 30.5 | 1523.0 |
| HR2KMCE-S-2.5-27C | 27*2.5 | 30.5 | 1581.4 |
| HR2KMCE-S-2.5-30C | 30*2.5 | 31.6 | 1720.2 |
| HR2KMCE-S-2.5-32C | 32*2.5 | 32.9 | 1839.9 |
| HR2KMCE-S-2.5-36C | 36*2.5 | 34.2 | 2012.8 |
| HR2KMCE-S-4.0-2C | 2*4.0 | 13.1 | 286.3 |
| HR2KMCE-S-4.0-3C | 3*4.0 | 13.9 | 341.2 |
| HR2KMCE-S-4.0-4C | 4*4.0 | 15.2 | 414.0 |
| HR2KMCE-S-4.0-5C | 5*4.0 | 16.7 | 492.3 |
| HR2KMCE-S-4.0-7C | 7*4.0 | 18.2 | 624.8 |
| HR2KMCE-S-6.0-2C | 2*6.0 | 14.5 | 364.5 |
| HR2KMCE-S-6.0-3C | 3*6.0 | 15.4 | 440.5 |
| HR2KMCE-S-6.0-4C | 4*6.0 | 16.9 | 539.0 |
| HR2KMCE-S-6.0-5C | 5*6.0 | 18.6 | 644.5 |
| HR2KMCE-S-6.0-7C | 7*6.0 | 20.5 | 851.8 |
| HR2KMCE-S-10.0-3C | 3*10 | 19.2 | 705.7 |
| HR2KMCE-S-10.0-4C | 4*10 | 21.1 | 867.5 |
| HR2KMCE-S-10.0-5C | 5*10 | 23.2 | 1040.7 |
| HR2KMCE-S-10.0-7C | 7*10 | 25.7 | 1373.4 |
| HR2KMCE-S-16-3C | 3*16 | 22.0 | 985.7 |
| HR2KMCE-S-16-4C | 4*16 | 24.3 | 1222.0 |
| HR2KMCE-S-16-5C | 5*16 | 27.0 | 1507.7 |
| HR2KMCE-S-16-7C | 7*16 | 29.6 | 1954.8 |
| HR2KMCE-S-25-3C | 3*25 | 26.7 | 1485.9 |
| HR2KMCE-S-25-4C | 4*25 | 29.5 | 1847.8 |
| HR2KMCE-S-25-5C | 5*25 | 32.6 | 2232.8 |
| HR2KMCE-S-25-7C | 7*25 | 35.8 | 2915.4 |
| HR2KMCE-S-35-3C | 3*35 | 29.8 | 1927.3 |
| HR2KMCE-S-35-4C | 4*35 | 33.0 | 2408.9 |
| HR2KMCE-S-35-5C | 5*35 | 36.5 | 2919.8 |
| HR2KMCE-S-35-7C | 7*35 | 40.1 | 3834.4 |
| HR2KMCE-S-50-3C | 3*50 | 34.8 | 2657.1 |
| HR2KMCE-S-50-4C | 4*50 | 38.5 | 3333.3 |
| HR2KMCE-S-50-5C | 5*50 | 42.7 | 4049.9 |
| HR2KMCE-S-50-7C | 7*50 | 47.0 | 5340.5 |
| HR2KMCE-S-70-3C | 3*70 | 39.1 | 3482.9 |
| HR2KMCE-S-70-4C | 4*70 | 43.4 | 4387.0 |
| HR2KMCE-S-70-5C | 5*70 | 48.1 | 5342.7 |
| HR2KMCE-S-95-3C | 3*95 | 44.8 | 4636.6 |
| HR2KMCE-S-95-4C | 4*95 | 49.8 | 5854.4 |
| HR2KMCE-S-95-5C | 5*95 | 55.3 | 7140.9 |
| HR2KMCE-S-120-3C | 3*120 | 49.0 | 5671.3 |
| HR2KMCE-S-120-4C | 4*120 | 54.5 | 7177.9 |
| HR2KMCE-S-150-3C | 3*150 | 54.3 | 7001.3 |
| HR2KMCE-S-150-4C | 4*150 | 60.5 | 8872.2 |
| HR2KMCE-S-185-4C | 4*185 | 66.8 | 10861.4 |
